Our Products

Cristex supplies a comprehensive range of products manufactured from Glass Fibre (E.C.S. ECR), Carbon Fibre, Aramid Fibre, Dyneema®, Thermoplastic (nylon, polyester etc.) Epoxy Resins, and Natural Fibres.

< Back to Braids/Tapes

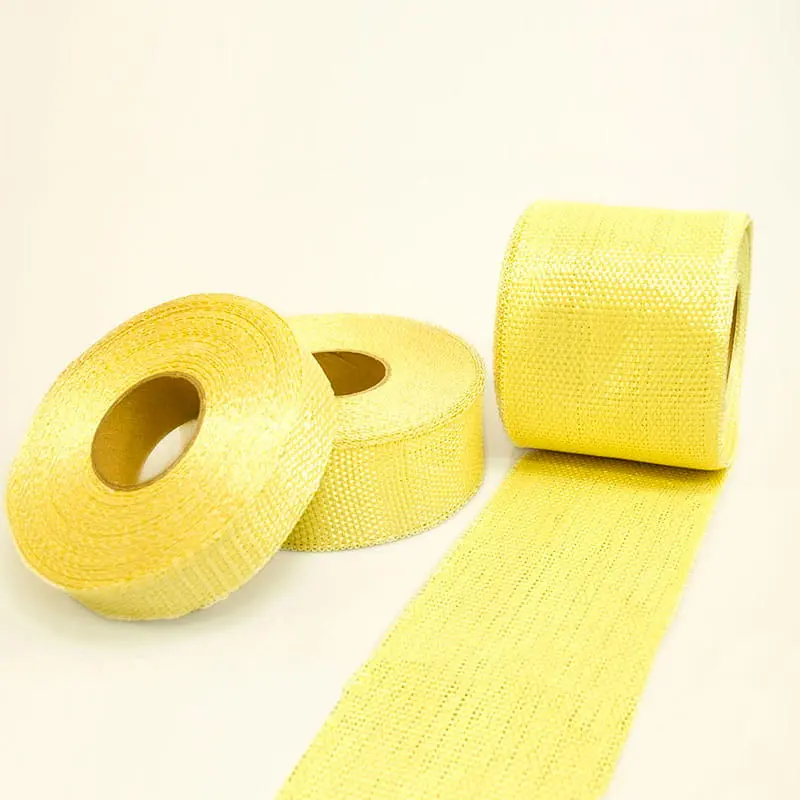

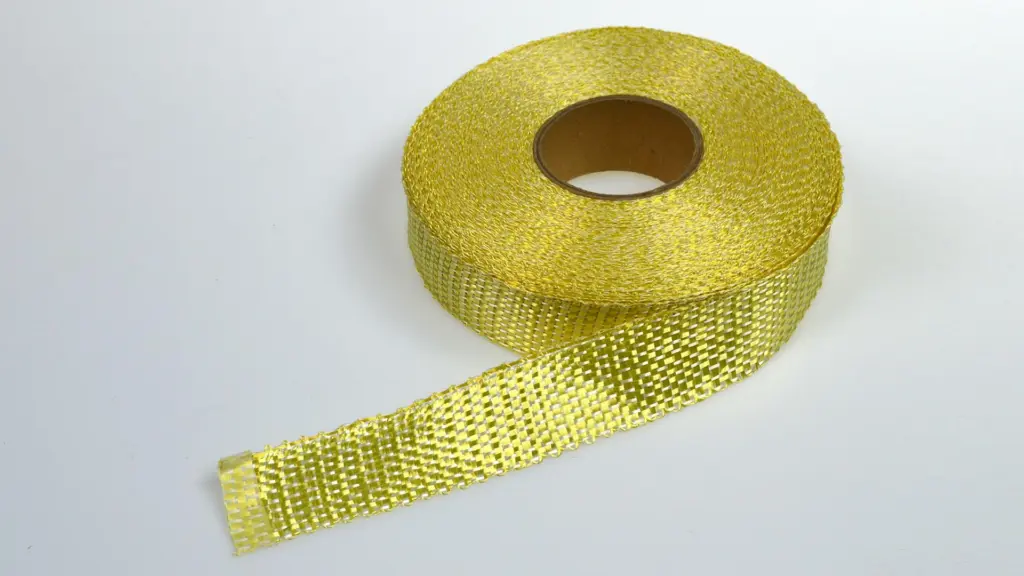

ARAMID TAPES

Downloadable brochure from Cristex:
woven_tapes



Standard Programme Unidirectional Aramid Tapes
Data Sheets
Article
Material
Thickness mm
Weight g/m ²
Width in mm 12 1/2
Width in mm 25
Width in mm 37 1/2
Width in mm 50
301 301 Aramid 0.28 205  x x x
708 708 Carbon/Aramid 1:1 0.50 330   x x



Reference
Areal Weight g/m²
Weaving Style
Warp %
Weft %
Ends cm.
Warp
Weft
Std Width cm.
Thickness mm.
TKU 150 150 Plain 91 9 5.6 Twaron Aramid 2420 dtex Twaron Aramid 220 tex 1.5-25 0.180
TKU 200 200 Plain 93 7 5.8 Twaron Aramid 3220 dtex Twaron Aramid 220 tex 1.5-25 0.230



Aramid Balanced Tapes
Data Sheet
Reference
Areal Weight g/m²
Weaving Style
Warp %
Weft %
Ends cm.
Warp
Weft
Std Width cm.
Thickness mm.
TKB 170 TKB 170 170 Plain 50% 50% 6.6 Twaron Aramid 121 tex Twaron Aramid 121 tex 1.5-20 0.220
TKB 220 TKB 220 225 Plain 50% 50% 6.6 Twaron Aramid 161 tex Twaron Aramid 161 tex 1.5-20 0.270

Standard Programme Aramid Woven Tapes
Data Sheets
Article
Material
Thickness mm
Weight g/m²
Width in mm 25
Width in mm 50
341 341 Aramid 0.30 190
320 320 Aramid 0.35 270 x



Cristex is proud to announce their association with Eurocarbon, a producer of Tubular and Flat Braids, Woven Tapes and Fabrics, primarily used in the composite industry. These Braids, Tapes and Fabrics are made out of high performance reinforcement fibres such as: Glass, Aramid, Carbon and Polyethylene. The Eurocarbon team based in Sittard, Netherlands can offer over 100 years of experience with a selection of Fibres, Resins, Design, and Manufacturing Methods for composite products.

Eurocarbon’s experience is also used to develop and produce preforms made by the Overbraiding process, in addition to this they have a close working relationship with transportation manufacturers, universities, research institutes and composite producers.

For further details please select an item from our product list for a full specification.

To order any of the products please get in touch with your requirements.
