Our Products

Cristex supplies a comprehensive range of products manufactured from Glass Fibre (E.C.S. ECR), Carbon Fibre, Aramid Fibre, Dyneema®, Thermoplastic (nylon, polyester etc.) Epoxy Resins, and Natural Fibres.

< Back to Braids/Tapes

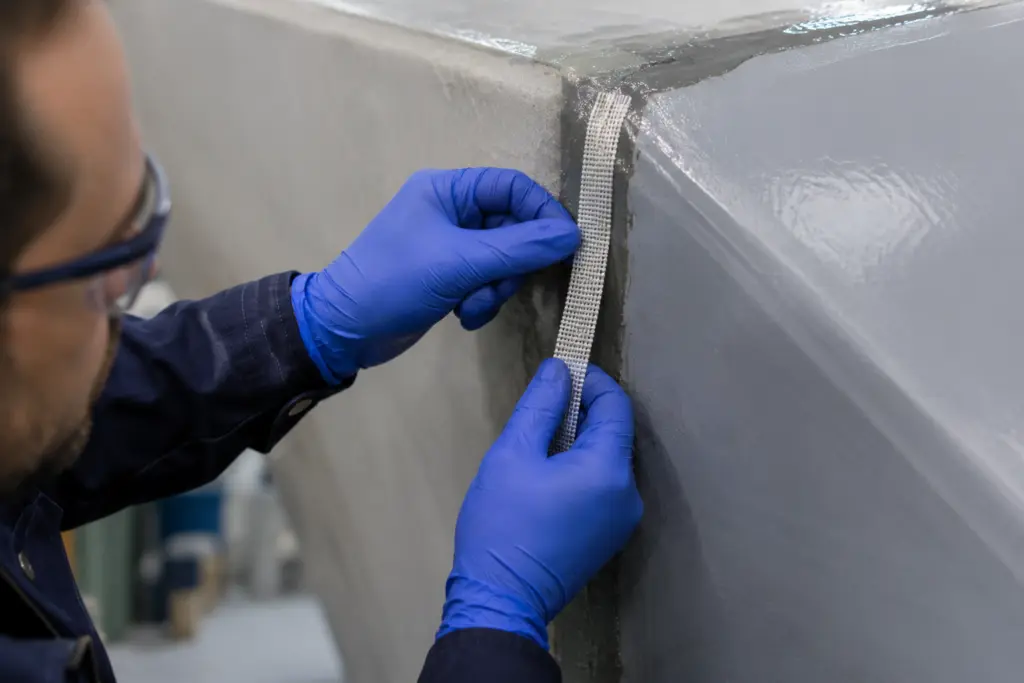

GLASS TAPES

With over 25 years of experience, Cristex has the most extensive ranges of tapes on the market today, this includes  0/90 and UD stitching.

The available tapes are composed of high performance fibres such as Glass, Carbon and Aramid. Each of these can be supplied in a range of widths and styles; including woven with or without bonded weft yarn or in Plain weave or 2/2 Twill weave. All products manufactured in these programs are standard products of Cristex.

The range of UD tapes are manufactured by various processes which include Weaving and Stitching. Widths available from 25mm – 300mm with weights from 40g to 1200g.

Downloadable brochure from Cristex:

woven_tapes



Standard Programme Unidirectional Glass Tapes
Data Sheets
Article
Material
Thickness mm
Weight g/m²
Width in mm12 1/2
Width in mm25
Width in mm37 1/2
Width in mm50
Width in mm75
Width in mm
100
E  E Glass   0.45 600    x  x
703_1  703 Carbon/ Glass 1:1   0.42  480



Glass Roving Unidirectional Tapes
Data Sheets
Reference
Areal Weight g/m²
Weaving Style
Warp %
Weft %
Ends cm.
Warp
Weft
Std Width cm.
Thickness mm.
TVU 400 TVU 400 410 Plain 93 7 3.2 Glass Roving 1200 tex EC 9 68 tex 1.5-20 0.400
TVU 600 TVU 600 605 Plain 91 9 4.6 Glass Roving 1200 tex EC 9 136 tex 1.5-20 0.500
TVU 1000 TVU 1000 1015 Plain 95 5 8.0 Glass Roving 1200 tex EC 9 204 tex 1.5-20 0.850



Standard Programme Woven Glass Tapes
Data Sheets
Article
Material
Thickness mm
Weight g/m²
Width in mm
12 1/2
Width in mm
25
Width in mm
37 1/2
Width in mm
50
Width in mm
75
Width in mm
100
Width in mm
120
521 521  Glass 0.13   140    x    x
568 568  Glass 0.23  205    x    x  x  x
501 501  Glass 0.28  290    x    x  x  x  x
507 507  Glass 0.35  450    x    x  x  x

Cristex is proud to announce their association with Eurocarbon, a producer of Tubular and Flat Braids, Woven Tapes and Fabrics, primarily used in the composite industry. These Braids, Tapes and Fabrics are made out of high performance reinforcement fibres such as: Glass, Aramid, Carbon and Polyethylene. The Eurocarbon team based in Sittard, Netherlands can offer over 100 years of experience with a selection of Fibres, Resins, Design, and Manufacturing Methods for composite products.

Eurocarbon’s experience is also used to develop and produce preforms made by the Overbraiding process, in addition to this they have a close working relationship with transportation manufacturers, universities, research institutes and composite producers.

For further details please select an item from our product list for a full specification.

To order any of the products please get in touch with your requirements.
