SAERcore & SAERcore MAX

SAERcore® is a patented SAERTEX flow media solution designed to significantly improve resin distribution and processing efficiency in closed mould composite manufacturing processes.

The material combines one or two layers of chopped strand mat (CSM) with an integrated flow medium, enabling faster and more controlled resin infusion throughout the laminate.

SAERcore® MAX extends this technology further by integrating multiaxial reinforcements directly within the sandwich structure, combining flow enhancement with structural reinforcement in a single material system.

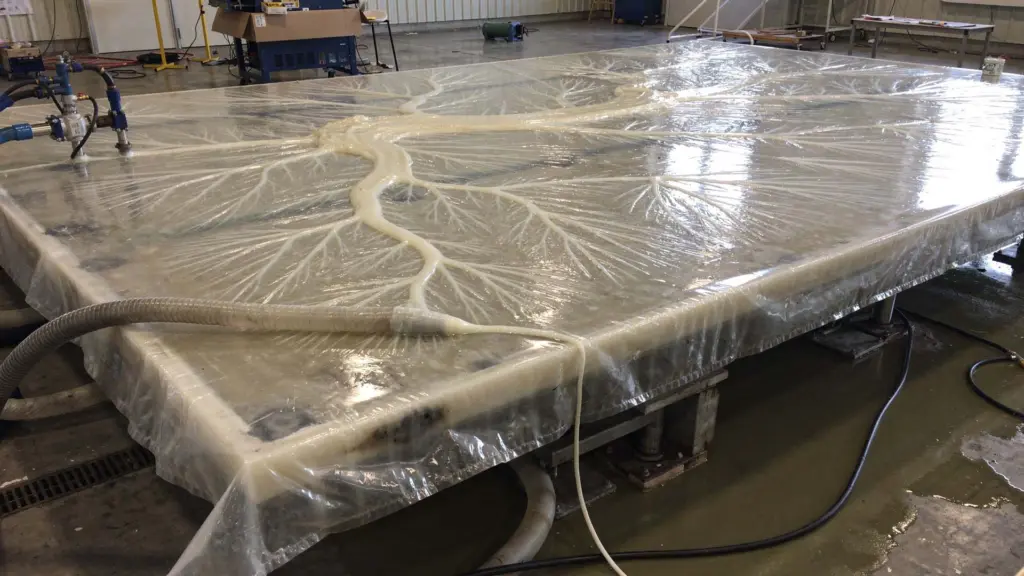

These engineered solutions are widely used in RTM, RTM Light and vacuum infusion applications where process speed, laminate quality and manufacturing consistency are critical.

Key Benefits

  • Resin flow rates up to 400% faster

  • High-flow versions capable of significantly reduced infusion times

  • Improved laminate consistency and quality

  • Flexible material configurations for different applications

  • Reduced processing time and improved manufacturing efficiency

  • Integrated reinforcement options with SAERcore® MAX

  • Suitable for complex and large-scale structural components

Product Range

SAERcore® combines chopped strand mat with integrated flow media to optimise resin flow during closed mould processing.

Suitable processes include:

  • RTM

  • RTM Light

  • Vacuum infusion

SAERcore® variants

SAERcore® High-Flow
The High-Flow version is specifically designed for applications requiring extremely rapid resin distribution and reduced mould filling times.

SAERcore® RC
The RC version incorporates 100% recycled core material for a lower CO2 footprint. The RC core has optimised resin flow for higher processing speeds.

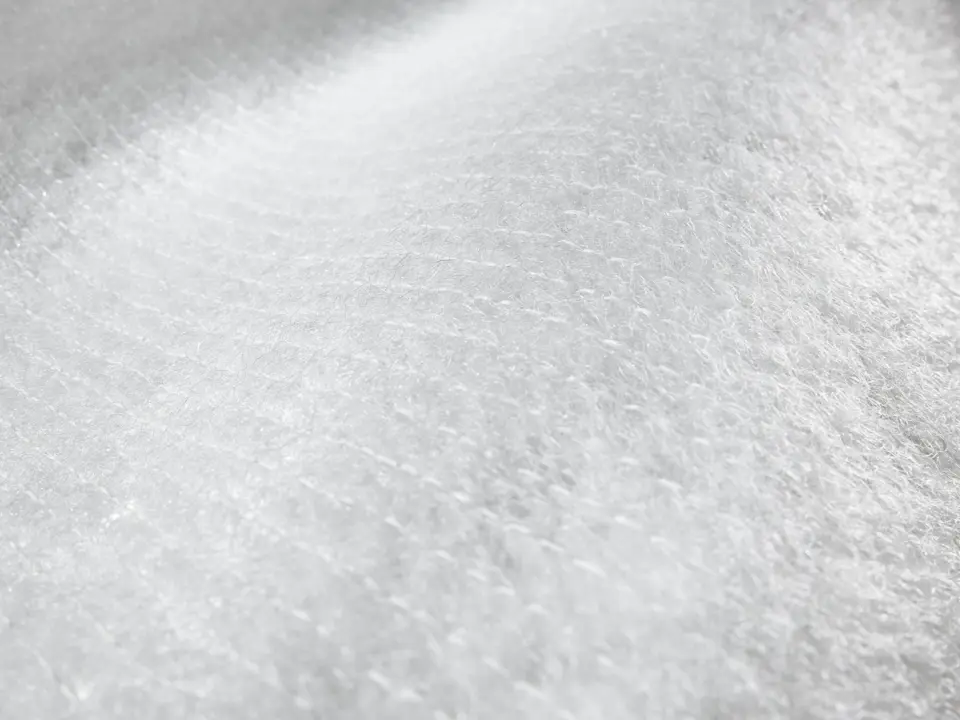

SAERcore® MAX
SAERcore® MAX integrates multiaxial reinforcements directly within the material structure, combining flow enhancement with structural reinforcement.

Additional Processing Options
Both SAERcore® and SAERcore® MAX are available with a range of additional processing features, including:

• SAERfix® Compatibility: Can be supplied in combination with SAERfix® to further reduce mould filling time and improve process stability.

• Surface Fleece Options: Additional non-woven surface layers can be incorporated to improve final component surface finish.

• Custom Kits: SAERTEX can produce customer-specific kits from templates or CAD files, helping reduce lay-up time and improve manufacturing efficiency.

Technical Specifications

Below is a selection of our standard specifications. Additional specifications may be available on request.

Technical Data SAERcore® SAERcore® High Flow SAERcore® RC Datasheet
Suitable Processes RTM, RTM Light RTM, RTM Light, Vacuum Infusion RTM, RTM Light, Vacuum Infusion
CSM per Layer (g/m²) 150–1000 150–1000 150–1000
Flow Medium PP10, PP13, PP18, PP20, PP25 PP18, PP25 RC18, RC25
Multiaxial Reinforcement Options Available as SAERcore® MAX Available as SAERcore® MAX Available as SAERcore® MAX
Standard Widths 1250 mm, 2500 mm 1250 mm, 2500 mm 1250 mm, 2500 mm
Individual Tape Widths 150–3200 mm 150–3200 mm 150–3000 mm

Applications

SAERcore® and SAERcore® MAX are used across a wide range of composite manufacturing applications, including:

  • Wind energy structures

  • Marine and transport components

  • Automotive structural parts

  • Industrial composite panels

  • Large RTM and infusion structures

The integrated flow media technology supports efficient resin distribution through large or complex laminates, helping improve processing consistency and reduce infusion times.

Looking to improve resin flow, laminate quality and processing efficiency?

Speak to our team about SAERcore® and SAERcore® MAX solutions for RTM and infusion applications.
