Unidirectional Non-Crimp Fabrics (UD NCF)

Unidirectional non-crimp fabrics (UD NCF) are advanced composite reinforcements designed to maximise fibre performance by aligning fibres in a single direction without the crimp associated with traditional woven fabrics.

The reinforcement fibres are held together using lightweight stitching yarns rather than interlacing the fibres, helping maintain straight fibre orientation and improving mechanical efficiency within the laminate.

UD NCF materials are widely used in structural composite applications where high stiffness, low weight and efficient resin infusion performance are critical.

Key Benefits

  • Excellent strength-to-weight performance

  • Improved directional mechanical properties

  • Reduced fibre crimp compared to woven reinforcements

  • Enhanced laminate efficiency and structural performance

  • Excellent resin flow characteristics

  • Improved laminate consistency in thick structures

  • Suitable for infusion, RTM and prepreg applications

  • Efficient handling and repeatable processing

Product Range

Cristex supplies a range of carbon and glass fibre unidirectional non-crimp fabrics.

Available formats include:

  • Standard UD non-crimp fabrics

  • Flow-enhanced UD fabrics

  • STEADY Plus reinforcements

  • Magic Flow structural fabrics

Typical weight ranges include:

• Carbon fibre: 314 g/m² – 1218 g/m²
• Glass fibre: 640 g/m² – 1207 g/m²

Advanced Processing Solutions

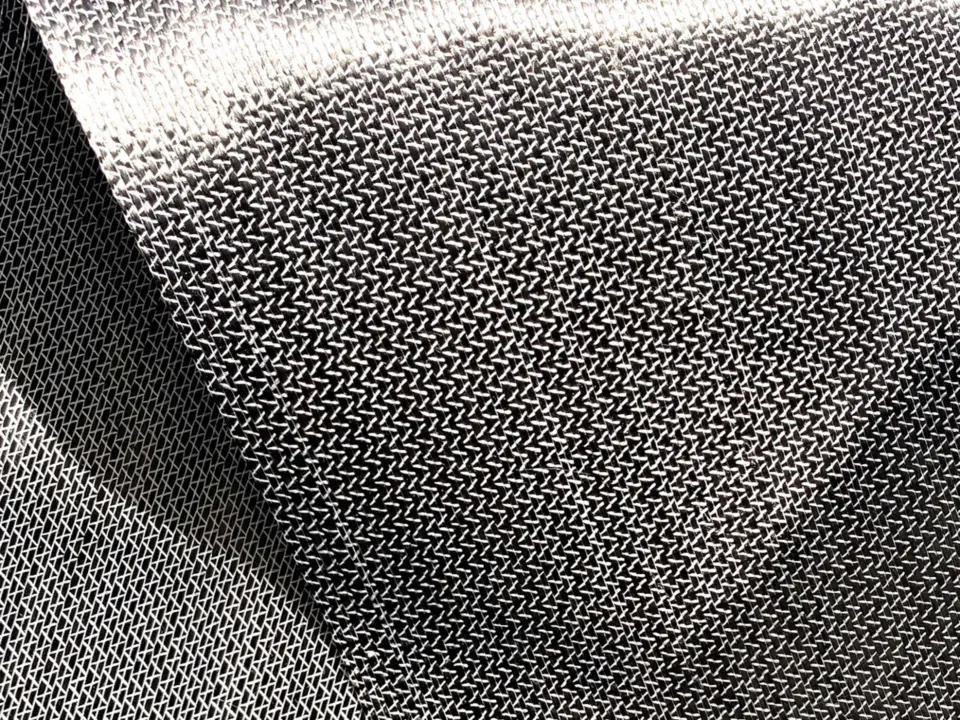

STEADY Plus
STEADY Plus is an engineered non-crimp reinforcement designed to improve resin flow and laminate consistency during infusion and RTM processing.

The integrated flow-enhancing structure helps achieve faster and more controlled resin distribution throughout the laminate.

Key Benefits of STEADY Plus
• Improved resin flow performance
• Reduced risk of dry spots
• Faster infusion processing times
• Enhanced laminate consistency
• Improved manufacturing repeatability

STEADY Plus is particularly suited to structural applications where laminate quality and processing efficiency are critical.

Magic Flow
Magic Flow is an advanced high-flow UD reinforcement developed for thick laminate applications requiring extremely efficient resin distribution.

The engineered structure supports resin flow through laminate thicknesses up to approximately 140 mm while maintaining laminate consistency and structural performance.

Key Benefits of Magic Flow
• High resin flow performance
• Reduced infusion times
• Improved wet-out in thick laminates
• Enhanced laminate consistency
• Suitable for large structural components

Available Grades & Specifications

Below is a selection of our unidirectional non-crimp fabrics. Additional specifications may be available on request.

Weight (g/m²) 0° Fibre Width (mm) Datasheet
314 300 g ZOLTEK 50K 1230
603 581 g ZOLTEK 50K 1230
Weight (g/m²) 0° 90° Width (mm) Datasheet
640 567 g 1200 TEX 35 g 68 TEX 1260
1200 1134 g 2400 TEX 54 g 60 TEX 1300
Weight (g/m²) 0° 90° Width (mm) Datasheet
622 585 4 100
622 585 4 200
622 585 4 300
1007 970 4 100
1007 970 4 200
1007 970 4 300
1207 1170 4 100
1207 1170 4 200
1207 1170 4 300
Weight (g/m²) 0° 90° Width (mm) Datasheet
602 565 4 100
602 565 4 150
602 565 4 200
602 565 4 300
1041 1004 4 100
1041 1004 4 150
1041 1004 4 200
1041 1004 4 300
1218 1181 4 100
1218 1181 4 150
1218 1181 4 200
1218 1181 4 300
Weight (g/m²) 0° 85° Width (mm) Datasheet
704 614 64 1270

Applications

UD NCF materials are commonly used across demanding structural composite applications including:

  • Wind energy blades and spars

  • Aerospace structures

  • Marine hulls and decks

  • Automotive and motorsport components

  • Industrial structural laminates

  • Large composite panels and beams

Looking to optimise laminate performance and infusion efficiency?

Speak to our team about UD non-crimp fabrics, STEADY Plus and advanced high-flow reinforcement solutions.

Get in Touch

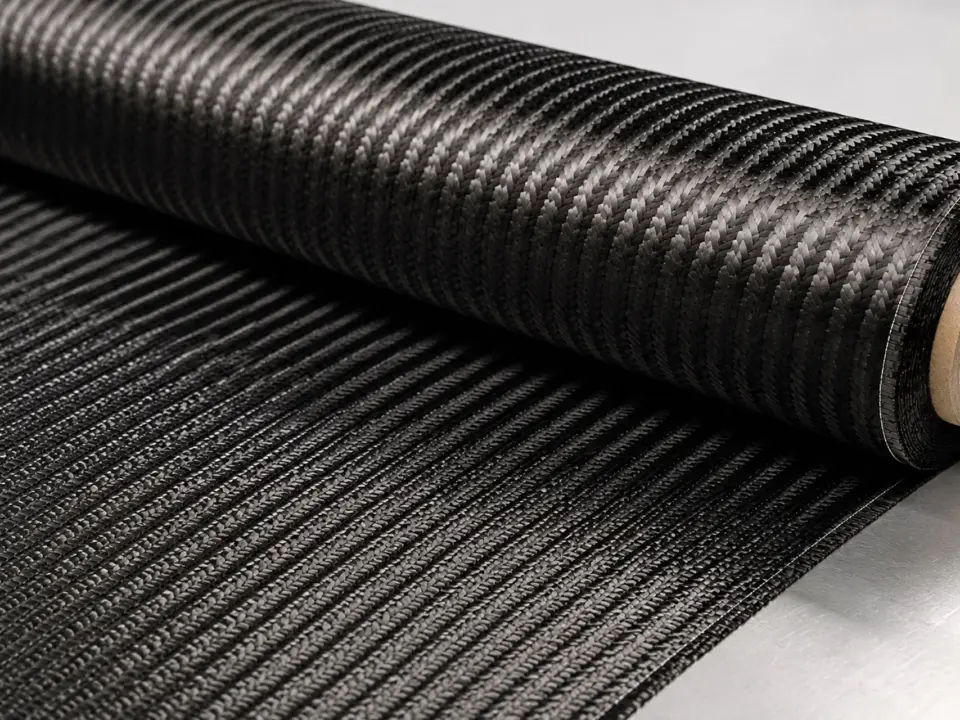

Related Products
