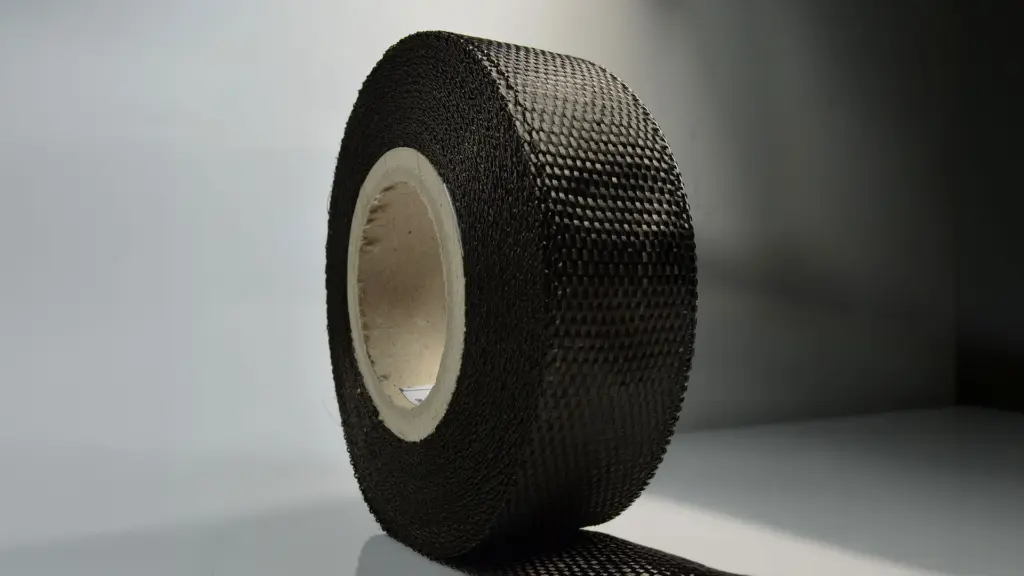

Carbon Fibre Reinforcement Tapes

Carbon fibre tapes are high-performance reinforcement materials designed to provide localised strength, stiffness and reinforcement within composite structures.

Available in both woven and unidirectional constructions, carbon tapes are manufactured using carbon fibre tows woven or stitched into narrow-width reinforcement formats with stable edges for improved handling and placement during composite lay-up.

These materials are commonly used where targeted reinforcement is required without adding unnecessary weight, making them ideal for structural strengthening, edge reinforcement and complex composite assemblies.

Carbon tapes are widely used across aerospace, automotive, marine, motorsport andindustrial composite applications where lightweight performance and structural integrity are critical.

Key Benefits

  • High strength-to-weight performance

  • Excellent localised reinforcement capability

  • Lightweight composite reinforcement solution

  • Available in woven and unidirectional formats

  • Stable edge construction for easier handling

  • Suitable for structural and cosmetic applications

  • Compatible with epoxy, polyester and vinyl ester resin systems

  • Available in multiple fibre weights and tape widths

Product Range

Cristex supplies a wide range of carbon fibre tapes in both woven and unidirectional constructions.

Datasheets available on request.

Available Grades & Specifications

Below is a selection of our carbon tapes. Additional specifications may be available on request.

Reference Weight (g/m²) Warp Weft Available Widths (mm) Datasheet
TCU125 124 Carbon 3K E-glass 34 TEX 25, 75
TCU175 175 Carbon 3K E-glass 34 TEX 25, 75, 100, 150, 200
TCU200 225 Carbon 6K E-glass 34 TEX 50, 100
1009 200 Carbon 3K — 30, 100
TCU260 260 Carbon 6K E-glass 34 TEX 25, 75, 100, 150, 200
TCU320 328 Carbon 6K E-glass 34 TEX 25, 30, 50, 75, 100, 150, 200
TCU330 335 Carbon 12K E-glass 68 TEX 25, 30, 50, 100, 150, 200
G 340 Carbon 12K — 25, 75, 100, 150
155 375 Carbon 12K — 25, 75, 100, 150
TCU420 430 Carbon 12K E-glass 68 TEX 50, 75, 100, 200
TCU520 525 Carbon 12K E-glass 68 TEX 25, 30, 50, 100, 150, 200
TCU600 620 Carbon 12K E-glass 68 TEX 75
TCU1000 993 Carbon 24K E-glass 136 TEX 100
TCU1200 1233 Carbon 24K E-glass 136 TEX 75
Reference Weight (g/m²) Warp Weft Available Widths (mm) Datasheet
TCU300 317 HM Carbon 12K M4J E-glass 34 TEX 100
TCU312 328 HM Carbon 6K XN80 E-glass 68 TEX 100
Reference Weight (g/m²) Warp Weft Available Widths (mm) Datasheet
TCB220 200 Carbon 3K Carbon 3K 25, 75, 100, 150, 250
TCB240 240 Carbon 3K Carbon 3K 25, 75, 100, 150
TCB300 300 Carbon 6K Carbon 6K 50, 100, 150, 250
TCB400 408 Carbon 12K Carbon 12K 250

Applications

Carbon fibre tapes are commonly used across advanced composite applications including:

  • Localised reinforcement of composite structures

  • Edge and joint reinforcement

  • Automotive and motorsport components

  • Aerospace composite assemblies

  • Marine composite structures

  • Sporting goods and performance products

  • Industrial composite tooling and profiles

  • Tubular and structural composite sections

Their narrow-width construction makes them particularly effective where reinforcement is  required in specific highstress areas without increasing laminate weight across the entire component.

Looking for lightweight carbon reinforcement solutions?

Speak to our team about carbon fibre tapes and high-performance reinforcement materials for advanced composite applications.
