Composite Gusset Fillers

Gusset fillers, sometimes referred to as “noodles”, are solid braided reinforcement profiles manufactured from carbon fibre, glass fibre and aramid fibre combinations.

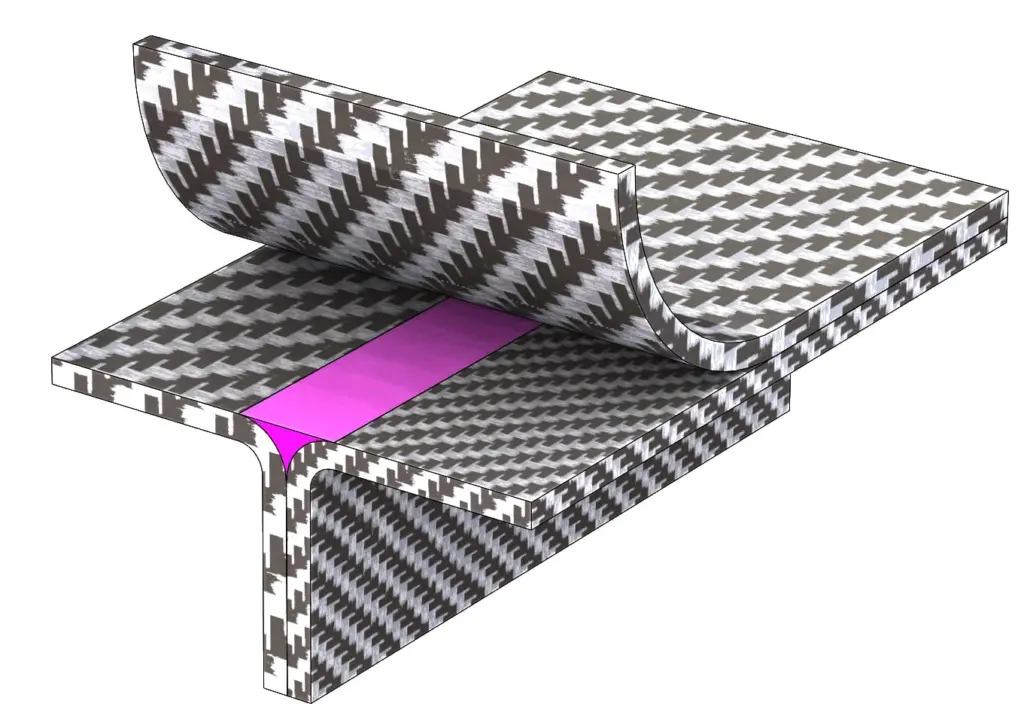

Designed to fill internal corners and voids within composite laminates, gusset fillers help improve laminate consistency, structural performance and manufacturing efficiency.

These materials are commonly used in structural composite assemblies where reinforcement is required within angled sections, corners and bonded joints.

Due to their braided construction, gusset fillers are easy to form into triangular profiles while maintaining good compatibility with surrounding reinforcement fabrics and resin systems.

Gusset fillers are widely used across aerospace, marine, automotive and advanced composite
manufacturing applications.

Key Benefits

  • Designed to fill laminate voids and corners

  • Easy to form into triangular profiles

  • Good permeability compatibility with reinforcement fabrics

  • Improves laminate consistency and structural integrity

  • Helps reduce manufacturing time and material waste

  • Suitable for structural composite applications

  • Lightweight reinforcement solution

  • Compatible with epoxy, polyester and vinyl ester resin systems

Product Range

Cristex supplies a range of carbon fibre gusset fillers designed for structural reinforcement and laminate void filling applications.

Available in:

  • Multiple braid diameters

  • Various cross-sectional areas

  • Aerospace-grade reinforcement constructions

  • Lightweight to heavy-duty reinforcement options

Available Grades & Specifications

Below is a selection of our fibre gusset fillers. Additional specifications may be available on request.

Reference Diameter at ±45º (mm) Weight per LM (g/LM) Cross-section Area (mm² 50% FV) Datasheet
B 008/01 1.7 3.5 3.9
L 008/04 2.5 4.4 4.9
L 008/05 3 5.3 5.88
L 008/06 3.5 7.7 8.56
L 008/07 3.8 10.1 11.2
L 008/08 4.1 12.6 14
L 008/09 4.4 15 16.6
L 008/10 5.4 20.3 22.6
L 008/11 6 25.6 28.4
L 008/12 6.1 30 33.4
L 008/13 7 35.2 39.2
L 008/14 7.7 41 45.6
L 016/07 10 51 56.6

Applications

Composite gusset fillers are commonly used across advanced composite applications including:

  • Aerospace structural assemblies

  • Composite corner reinforcement

  • Bonded composite joints

  • Marine composite structures

  • Automotive and motorsport components

  • Structural laminate transitions

  • Industrial composite assemblies

  • High-performance composite tooling

Their ability to reinforce corners and fill laminate voids makes them particularly effective within structural composite manufacturing processes.
