Woven Unidirectional Fabrics

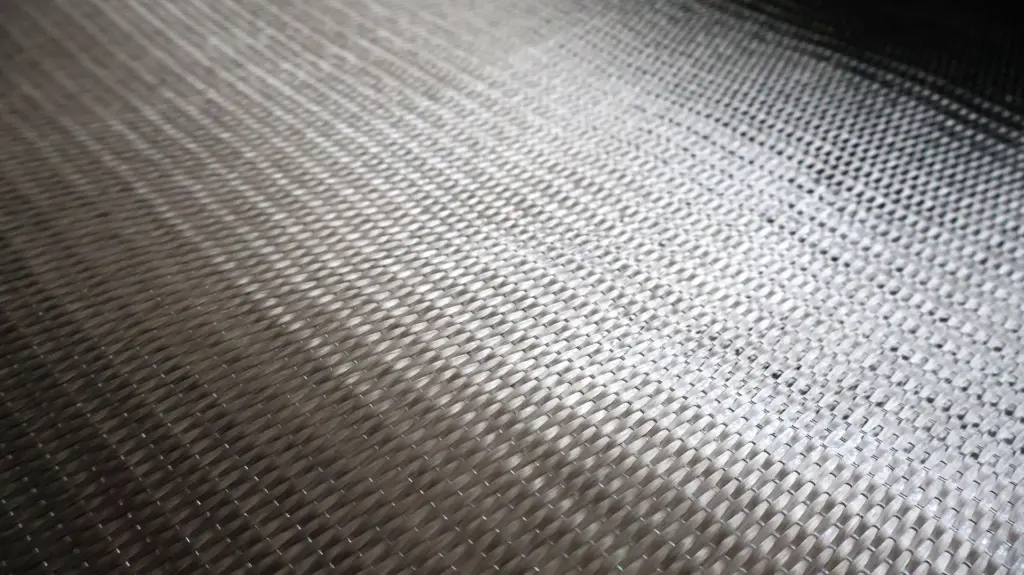

Woven unidirectional (UD) fabrics are engineered composite reinforcements where the majority of fibres are aligned in a single direction, typically 0° or 90°, with a small secondary fibre used to stabilise the structure during handling and processing.

By maximising fibre alignment within the primary load direction, woven UD fabrics deliver high directional stiffness and tensile strength while maintaining excellent laminate efficiency. Compared to traditional woven fabrics, unidirectional reinforcements reduce fibre crimp, helping improve structural performance and reduce unnecessary weight within the laminate.

These materials are widely used in structural composite applications where directional loading and weight optimisation are critical.

Key Benefits

  • High strength and stiffness in the primary load direction

  • Improved laminate efficiency through reduced fibre crimp

  • Excellent structural performance-to-weight ratio

  • Good handling and processing stability

  • Available in carbon, glass and aramid fibre constructions

  • Suitable for infusion, RTM and prepreg applications

  • High areal weights available for demanding structural laminates

Product Range

Cristex supplies a range of woven unidirectional fabrics in carbon and glass fibre constructions.

Available formats include:

• Standard woven UD fabrics
• Thermofixed woven UD fabrics



Typical weight ranges include:
• Carbon fibre: 160 g/m² – 1200 g/m²
• Glass fibre: 223 g/m² – 1600 g/m²



These materials are available in a range of fibre architectures and widths to support structural  composite manufacturing requirements.



Available Grades & Specifications

Below is a selection of our woven UD fabric styles. Additional specifications may be available on request.

Weight (g/m²) Warp % Weft % Fibre Warp Fibre Weft Width (mm) Datasheet
160 98% 3% Carbon Fibre 3K E-glass EC5 11 TEX 500 / 1000
173 81% 19% Carbon Fibre 3K E-glass EC9 68 TEX 500 / 1000
220 80% 20% Carbon Fibre 3K E-glass EC9 68 TEX 500 / 1000
325 94% 6% Carbon Fibre 12K E-glass EC9 68 TEX 500 / 1000
421 95% 5% Carbon Fibre 12K E-glass EC9 68 TEX 500 / 1000
630 94% 6% Carbon Fibre 24K E-glass EC9 136 TEX 500 / 1000
Weight (g/m²) Warp % Weft % Fibre Warp Fibre Weft Width (mm) Datasheet
223 93% 7% E-glass 300 TEX E-glass EC9 34 TEX 1000 / 1200
Weight (g/m²) Warp % Weft % Fibre Warp Fibre Weft Width (mm) Datasheet
218 92% 8% Carbon Fibre 12K Thermoplastic Yarn 110 TEX 500 / 1000
322 94% 6% Carbon Fibre 12K Thermoplastic Yarn 110 TEX 500 / 1000
418 96% 4% Carbon Fibre 12K Thermoplastic Yarn 110 TEX 500 / 1000
626 97% 3% Carbon Fibre 24K Thermoplastic Yarn 110 TEX 500 / 1000
Weight (g/m²) Warp % Weft % Fibre Warp Fibre Weft Width (mm) Datasheet
315 95% 5% E-glass Roving 600 TEX Thermoplastic Yarn 110 TEX 500 / 1000
515 97% 3% E-glass Roving 1200 TEX Thermoplastic Yarn 110 TEX 500 / 1000

Applications

Woven UD fabrics are commonly used across high-performance composite applications including:

  • Aerospace structural components

  • Marine hulls and reinforcement structures

  • Wind energy blades and spars

  • Automotive and motorsport structures

  • Industrial composite laminates

  • Lightweight structural panels and beams
