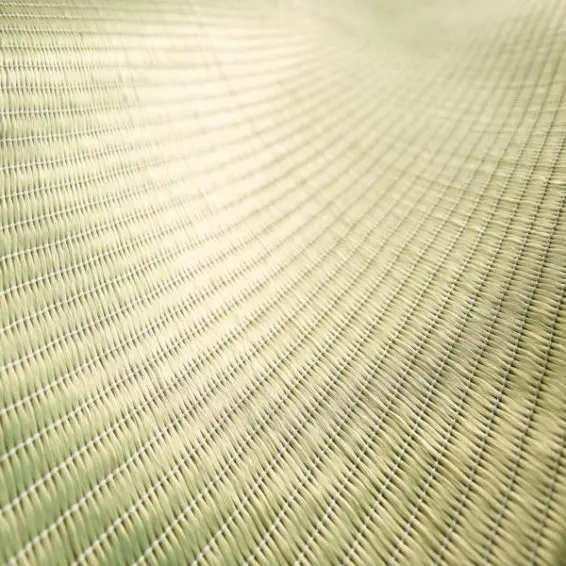

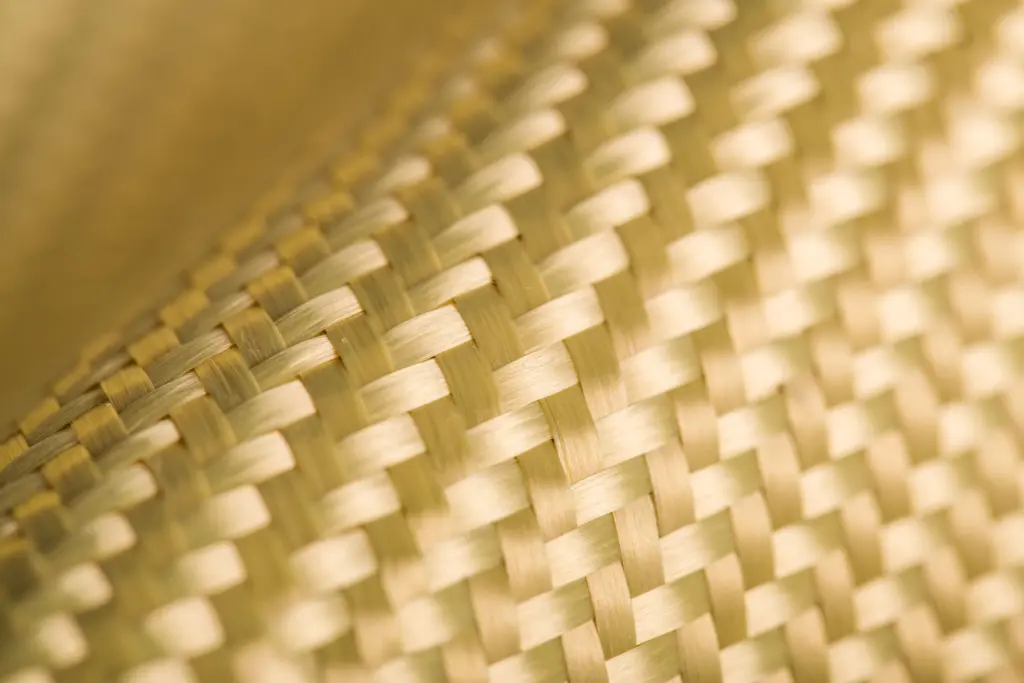

Aramid Fabric
In a world where lightweight and durable composites are increasingly replacing traditional materials, Aramid plays an important role. Aramid Fibre also referred to as Kevlar® or Twaron is a man-made organic Polymer produced by spinning a solid fibre from a liquid chemical blend. The bright golden yellow filaments produced can have a range of properties, but all have high strength and low density giving very high specific strength.
The Benefits
- High Strength
- Low Weight
- Resistant to impact and abrasion damage
- Can be waterproof
What We Offer
The Cristex range includes 60g – 460g per square meter fabric in plain, twill or satin weaves. Some typical applications are boat hulls, car seats and automotive applications such as under engine protection panels. Our Aramid fabrics are composite grade and available in a variety of weights, give us a call to discuss your Aramid requirements.
* Available to order – please give us a call to find out more about this product.
| Datasheet | Reference | Weight g/m² | Weaving Style | Warp % | Weft % | Ends cm | Warp | Weft |
|---|---|---|---|---|---|---|---|---|
| STYLE-120 | * STYLE 120 | 60 | Plain | 50% | 50% | 13.5 | Aramid 220 dtex | Aramid 220 dtex |
| STYLE-281 | STYLE 281 | 172 | Plain | 50% | 50% | 6.6 | Aramid 2200 1210 dtex | Aramid 2200 1210 dtex |
| STYLE-285 | STYLE 285 | 172 | 5H Satin | 49% | 51% | 6.6 | Aramid 2200 1210 dtex | Aramid 2200 1210 dtex |
| KK 170 T | KK 170 T | 172 | 2/2 Twill | 50% | 50% | 6.6 | Aramid 2200 1210 dtex | Aramid 2200 1210 dtex |
| KK 220 P | KK 220 P | 218 | Plain | 50% | 50% | 6.4 | Aramid 2200 1610 dtex | Aramid 2200 1610 dtex |
| KK 300 T | KK 300 T | 310 | 2/2 Twill | 50% | 50% | 4.5 | Aramid 2200 3220 dtex | Aramid 2200 3220 dtex |
| KK 460 P | KK 460 P | 462 | Plain | 50% | 50% | 6.7 | Aramid 2200 3220 dtex | Aramid 2200 3220 dtex |
